How to Set Up SendLayer on Cloudflare

Want to use SendLayer with a domain hosted on Cloudflare?

Using SendLayer to send emails from a domain hosted on Cloudflare is a simple and straightforward process that requires just a few steps to set up.

In this tutorial, we’ll show you how to set up SendLayer with a domain that’s hosted on Cloudflare.

Before getting started, be sure to:

Viewing DNS Records in SendLayer

Once you’ve added a domain to your SendLayer account, SendLayer will generate 5 DNS (Domain Name System) records that are unique to your domain.


Here are the types of DNS records that SendLayer provides:

Each type of DNS record has a HOSTNAME and VALUE specific to your domain. You’ll need to add each of the 5 DNS records to the DNS settings in your Cloudflare account, which we’ll go over in the following steps.

Locating DNS Settings in Cloudflare

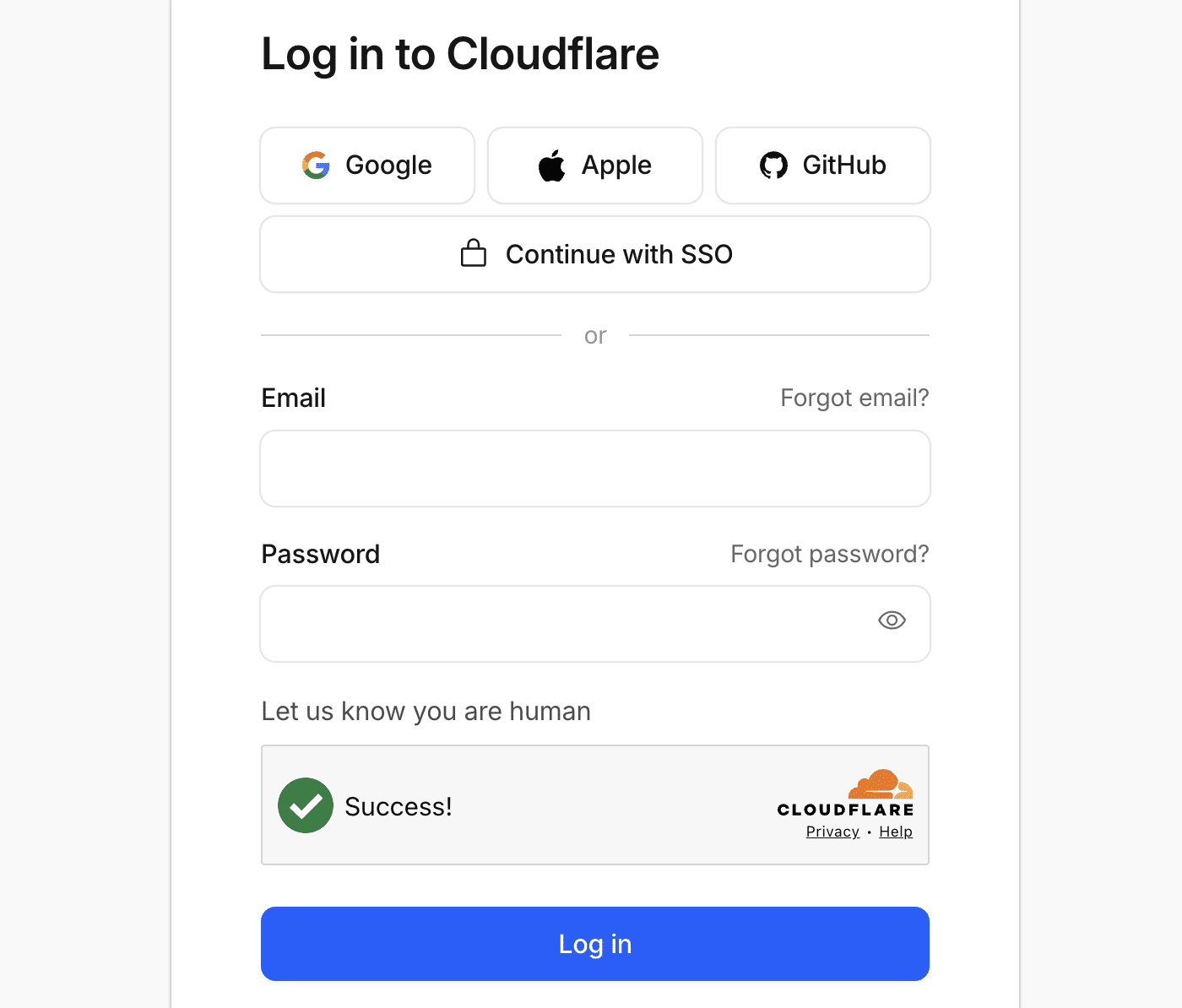

To locate your domain’s DNS settings in Cloudflare, you’ll first need to log in to your Cloudflare dashboard. We recommend keeping your SendLayer and Cloudflare accounts open in separate tabs or windows, so you can quickly switch between the two.

Once you’ve accessed your Cloudflare dashboard, select your account.

select your account in cloudflare

On the next page, you should see a list of your domains. Go ahead and click on the same domain that you’ve added to your SendLayer account.

select your domain in cloudflare

Next, click on DNS in the side menu.

click DNS menu item

This will take you to the DNS page where you can view and manage your DNS records.

cloudflare DNS record table view

In the next section, we’ll cover how to add SendLayer DNS records to your Cloudflare account.

Adding DNS Records to Cloudflare

To add a new DNS record to your domain, click the Add record button.

click add record button

Now you’ll see a new section appear with some configuration options for adding a new DNS record. Here you’ll see inputs for the DNS record type, name (hostname), target (value), proxy status, and TTL.

dns management for your domain

For each of the 5 DNS records that SendLayer generates, you’ll need to add the TYPEHOSTNAMEVALUE, and TTL to the corresponding fields in Cloudflare.

To provide an example, we’ll add our first CNAME record to our Cloudflare DNS settings.

Note: The DNS settings provided in our examples are for demonstration only. Your DNS records will be unique to your domain.

First, click the Type dropdown and select CNAME from the list of DNS record types.

select cname dns record type

Next, navigate back to your SendLayer account and locate the HOSTNAME. Here you’ll see the sl subdomain followed by your domain name.


Cloudflare automatically adds your domain name to the hostname of the DNS records that you add to your account.

Since Cloudflare includes your domain name in the DNS records for you, be sure to remove your domain from the hostname and only include the sl subdomain when you add the record to your Cloudflare account. You’ll need to remove your domain from the hostname for each of the 5 DNS records that SendLayer provides.

In the case of our first CNAME record, would need to be removed from, leaving just the sl subdomain as the record you’d add.

Once you’ve identified the HOSTNAME in SendLayer, head back to your Cloudflare account and add the HOSTNAME to the Name field.

add sl subdomain to name field

After that, switch back to your SendLayer account and copy the VALUE by clicking on the copy icon.


Next, head back to your Cloudflare account and paste the VALUE into the Target field.

add value to target field

Then, turn off the Proxy status by toggling the switch to the off position. You’ll want to turn this off for each DNS record you add to Cloudflare.

toggle proxy status to off position

Now, click the TTL dropdown and select 5 min from the list of TTL options.

set TTL to 5 min

Once you’ve entered the details for your first DNS record, go ahead and click the Save button.

click save button

Now that you’ve successfully added your first DNS record, be sure to repeat this process with the remaining DNS records that are in your SendLayer account. You should be adding a total of 4 different CNAME records and 1 TXT record.

After you’ve added all 5 DNS records, you should see them listed in the DNS table in your Cloudflare account.

added dns records to cloudflare

Checking Your Domain Status

After you’ve added the DNS records to your Cloudflare account, you can check if they’ve successfully propagated right from your SendLayer account. Remember, it may take up to 24-48 hours for your web hosting account to apply the DNS changes.

To learn how to check if your DNS records have been added successfully, check out our tutorial on checking your domain status.

That’s it! Now you know how to set up SendLayer on Cloudflare.

Next, would you like to learn how to check that your emails are successfully reaching users’ inboxes? Check out our tutorial on checking the email log for more information.
